Empower your workday with the Air N Arc® 330 Diesel ALL-IN-ONE Power System®, boasting cutting-edge Lincoln Electric welding technology. This advanced system redefines versatility, efficiency, and reliability. It seamlessly integrates an impressive 40 or 60 CFM of air power, 10,000W of smooth wave AC electric power, a 330A, 12V/24V battery booster, a 50A, 12V/24V/48V charger, and a Lincoln Electric® 330A DC multi-process arc welder featuring Chopper Technology®. This machine boosts productivity, optimizes bed space, and reduces weight while ensuring convenience and safety through a single control panel. With the Air N Arc® ALL-IN-ONE Power System®, you’re ready for any workday challenge.

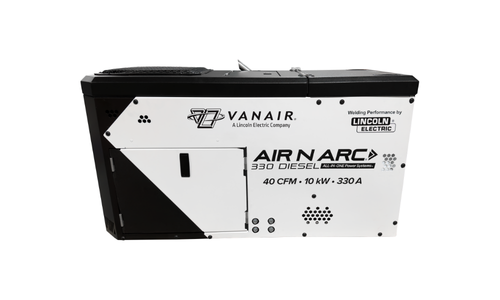

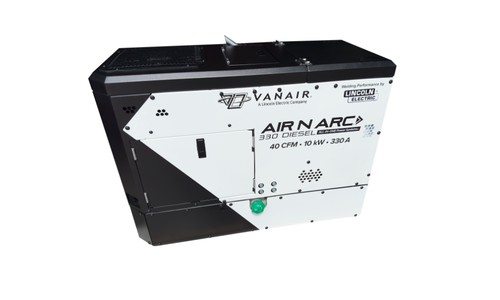

Air N Arc® 330 Diesel ALL-IN-ONE Power System®
Discover the Future of Power, Performance, and Productivity!Air Compressor | Generator | Welder | Battery Booster | Battery Charger
Welding Performance By
The image(s) shown is for representation purposes
only and may not reflect the actual product.
| Engine: | 24.8HP Kubota®, 3-Cylinder, Water-Cooled Diesel Engine |
| Air Compressor: | Rotary Screw, 40 CFM @ 150 PSI, Up to 175 PSI; 60 CFM @ 150 PSI, Up to 175 PSI |
| Generator: | Lincoln Electric AC Brushed Generator, 10kW Continuous Output, 120/240V, 60Hz |
| Welder: | Lincoln Electric DC Multi-Process Welder, CC (Stick, Gouging, and TIG): 35-330A, CV (MIG and FCAW): 14-40V |
| Battery Boost/Charge: | 330A, 12V/24V Boost; 50A, 12/24V Charge |
| Drive System: | Belt Driven Compressor, Direct Driven Generator and Welder |
| Chassis Charge Back: | 50A @ 14VDC |
| Fuel Capacity: | 11 Gal., Tied to Chassis, or Bolt-On Frame Option |
Air N Arc® 330 Diesel Unit Dimensions:
Footprint (In.): 47.5 L x 21.4 W x 25.6 H
With Fittings (In.): 48.2 L x 21.9 W x 27 H
Dry Weight (Lbs.): 750
Dimensions listed are not a complete representation of total space necessary. Please consult Vanair® for overall space and air requirements.
Vanair® reserves the right to make changes in engineering, design, and specifications, add improvements, or discontinue manufacturing at any time, without notice or obligation. Vanair®, the Vanair® logo and Mobile Power Solutions® are registered trademarks or trademarks of Vanair®, a Lincoln Electric Company, Michigan City, IN, USA. © 2026 All Rights Reserved.
- 052282 — Air N Arc® 330 Diesel – 40 CFM Compressor, Chassis Fuel, Chassis Battery
- 052526 — Air N Arc® 330 Diesel – 40 CFM Compressor, Bolt-On Frame
- 052565 — Air N Arc® 330 Diesel – 60 CFM Compressor, Chassis Fuel, Chassis Battery
- 052600 — Air N Arc® 330 Diesel – 60 CFM Compressor, Bolt-On Frame
FEATURES
- Direct-coupled generator & rugged belt-driven compressor
- Electronic inlet control for precise pressure regulation
- Brushless electric cooling fan
- Integrated fuel system built into the chassis
- Flexible exhaust configurations: top or rear discharge
- Remote-mountable control panel for added convenience
- Latched, lift-off access panels for easy maintenance
- Powder-coated galvannealed steel shrouding for durability
- 2-point lift bail for easy handling
DIMENSIONS AND WEIGHT
- 47.5 L x 21.4 W x 25.6 H (in.) Footprint
- 48.2 L x 21.9 W x 27 H (in.) With Fittings
- 750 lbs. Dry Weight
AIR COMPRESSOR
- Vanair® rotary screw compressor
- Available output options:
- 40 CFM/150 PSI (up to 175 PSI)

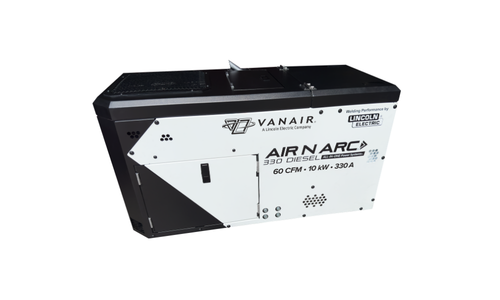

- 60 CFM/150 PSI (up to 175 PSI)
- Made in the USA
WELDER
- Lincoln Electric DC multi-process welder with Chopper Technology®
– CC (Stick, Gouging, & TIG) 35-330A
– CV (MIG & FCAW) 14-40V
GENERATOR
- Lincoln Electric AC brushed generator
- 10kW Continuous Output, 120/240V, 60Hz
- Single phase
- Smooth output for minimal distortion
BATTERY BOOST/CHARGE
- 330A, 12/24V boost
- 50A, 12/24V charge
CHARGE BACK TO CHASSIS MODE
- Up to 50A

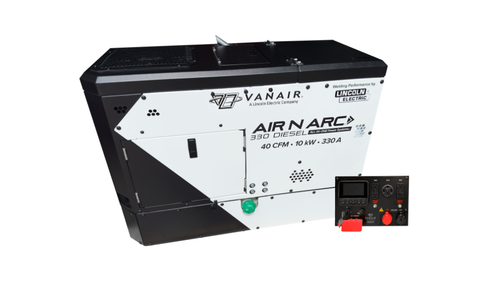

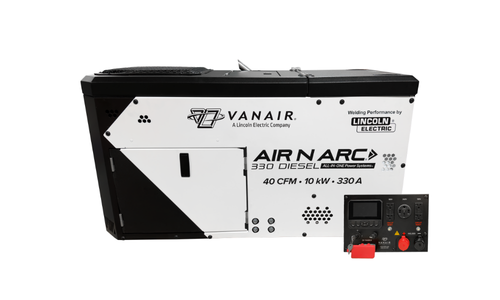

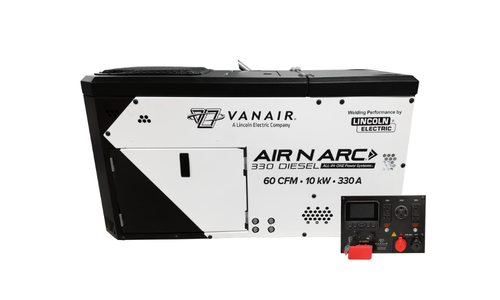

SINGLE REMOTE CONTROL PANEL
- Electronic high‑visibility LCD display with button controls
- Dual 120V, GFCI receptacles
- Single 240V, 50A receptacle
- Selector knob for easy navigation & mode/setting selection
- Key switch
COLD WEATHER PACKAGE
- Integrated 12VAC weather package
ENGINE
- 24.8HP Kubota®, 3-cylinder, water-cooled diesel engine
- Electronic variable speed
- Tier 4F emission compliant
EV CHARGING
- 240V receptacle for Vanair® EPEQ® Level 2 EV Charger
- Lincoln Electric® accessories, including TIG, spool gun & suitcase welder (LN25X)
- Welding cables (25’, 50’)
- Cable extensions
- Welding rods
- Welding helmet with auto‑darkening lens
- 3kW inverter
- 120VAC engine block heater
- Battery booster cables
- EPEQ® portable EV charger
- Remote fuel tank
- Remote air tank
- Remote condensation drain
- Wireless remote control kit
- Bolt‑on frame kit (battery, fuel tank, & air tank)
- Maintenance kits
- Machine cover
| PART DESCRIPTION | PART NUMBER |
|---|---|
| Every 500 Hour or Annual Compressor Maintenance Kit | KIT1501 |
| Initial 50 Hour Compressor Maintenance Kit | KIT1505 |
| KUBOTA® D902 Every 200 Hour or Annual Engine Maintenance Kit For Air N Arc® 330D | KIT1518 |
| KUBOTA® D902 Every 200 Hour or Annual Engine Maintenance Kit For Air N Arc® 330D W/ BOF | KIT1519 |
| Vanair® Spin-On Air/Oil Separator | 264470 |
| Vanair® Compressor Oil Filter | 266801 |
| Compressor Air Filter Replacement Element Only | 280661-1 |
| KUBOTA® Inline Fuel Filter | 280724 |
| Vanair® Compressor/Engine Air Filter Element Only | 276688-002 |
| KUBOTA® Spin-On Fuel Filter | EN273303-01 |
| 1 Gallon of Vanguard™ High Pressure Rotary Crew Compressor Oil | 275691-1GAL |
| KUBOTA® Oil Filter | EN38480 |
| Optional Weld Cable Set 25′ | 033020-25 |
| Optional Weld Cabe Set 50′ | 033020-50 |
| INVERTER3000LF, 12VDC | 282905 |
| Battery Boost Cables, 2 Gauge With Quick Connect Ends, 25ft | MA269938 |
